FUTS3003 S3003 Servo Standard

FUTS3003 S3003 Servo Standard

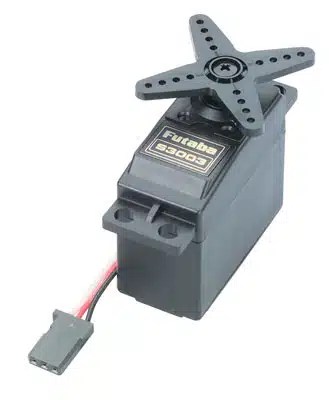

This is the Futaba S3003 Standard Servo.
This basic servo is used in cars, boats, or where standard servos are used.
This is the replacement for the following servos, S138,S148,S22,S38 and S12.

This servo can produce high-current draw from your batteries.
If using NiMH or LiPo batteries, make sure they are capable
of delivering sufficient amps.

INCLUDES: One S3003 standard servo with preinstalled Xshape servo horn FUTM0031
Four brass eyelets
Four Black rectangular rubber grommets (FUTM2348)
Four servo mount screws
One servo wheel 1-3/8″ (35mm) in diameter
One X-shape servo arm 1.5″ (38mm) across
One star shaped arm 1-1/4″ (32mm) across
Nylon gears
One year warranty

SPECS: Speed: 0.23 sec/60° @ 4.8V
0.19 sec/60° @ 6V
Torque: 44 oz-in (3.2 kg-cm) @ 4.8V
57 oz-in (4.1 kg-cm) @ 6V
Dimensions: 1.6 x 0.8 x 1.4″ (1-9/16 x 13/16 x 1-7/16″)
(40 x 20 x 36mm)
Weight: 1.3oz (1-5/16oz) (37g)
Connector: “J” type with approx. 5″ lead
