X4 Plus AC/DC Charger

$209.99

Out of stock

SKU: HRC44167 Category:

Description

X4 Plus AC/DC Charger

 X4 Plus AC/DC Charger

Hitec X4 Plus AC/DC Powered Multi Charger, Discharger and Balancer.

FEATURES:

Charges 1-6 cell LiPo, LiFe and Li-ION, 1-15 cell NiCd and NiMH
and 2-20V lead acid batteries
Fast Charge, Balance Charge and Storage Charge modes for lithium
batteries
Automatically controls current rate during charging and discharging
process
Four independent 50-watt power outputs charges up to four batteries
at once
Four independent balancing ports for lithium batteries
Five user customizable presets per output
Twin fan cooling system with internal sensor for controlling fan
speed
Batteries can be set to automatically Charge/Discharge or Discharge/
Charge up to a maximum of 5 cycles
Automatic charge termination* if battery temperature gets too high
*Temperature probe (HRCP4159) is required and must be purchased
separately
PC-based program can analyze the characteristics of each battery via
a USB port*, graph of voltage, current and capacity curves with
individual voltage of each cell in a lithium pack can be displayed
on a PC- *PC-LINK USB adaptor is required and must be purchased
separately, HRCP4168

INCLUDES:

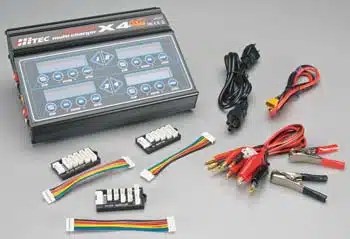

Hitec X4 Plus AC/DC Powered Multi Charger with AC and DC Input Cables
Battery Clamps, Tamiya Charge Connector, RX Battery Charge
Connector, TP/FP, HP/PQ, and XH type LiPo Balancer Boards two Bare
Wire Connectors, Alligator Clip Charging Connector and Manual

SPECS:

Input Voltage: AC, 100-120V (330-380W)
DC, 11-18V (minimum 20A)
Charging Current: 0.1-6.0A (max 50W x 4, total 200W)
Discharging Current: 0.1-1.0A (max 5W x4, total 20W)
Dimensions: 8.8 x 6.7 x 2.6″ (225 x 170 x 66mm)
Weight: 3.5lbs (1.57kg)



Additional information

Weight 5 lbs
